20-25 Minutes Time Powder Coating Curing Oven Steel Substrate

Coating Equipment Electrostatic Powder Coating Machine Booth Oven Production Line System

1. Product Description

Whether electrical, gas or diesel fired. Whether batch type or conveyorized tunnel type. Designed and built specially for Powder & Liquid curing

purposes assuring you of low power consumption with uniform temperature throughout the working space in the oven.

Melting & Curing constitutes a highly critical phase of the powder coating process. The curing schedules recommended by the powder or liquid

supplier must be strictly followed, if good adhesion & corrosion resistance is to be achieved. While powder melts at approx.100°C, curing requires

higher temperatures usually between 180°C to 200°C.If the curing is inadequate, the quality will be brittle and flake-off easily.

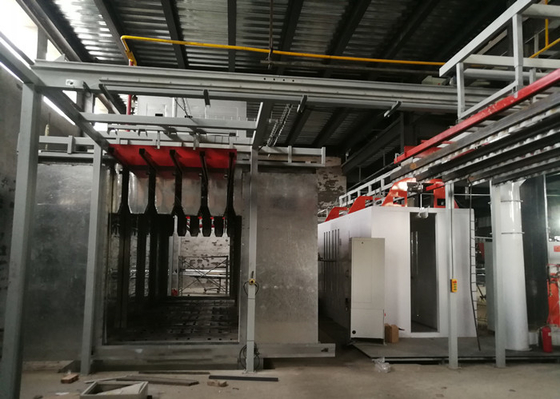

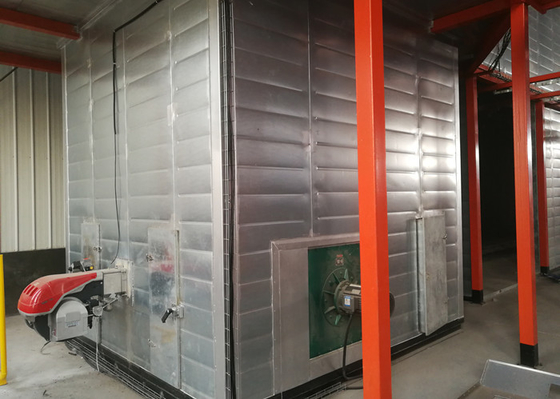

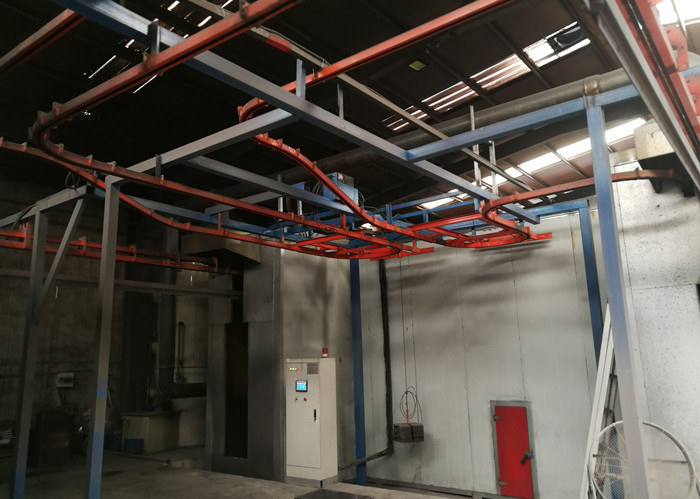

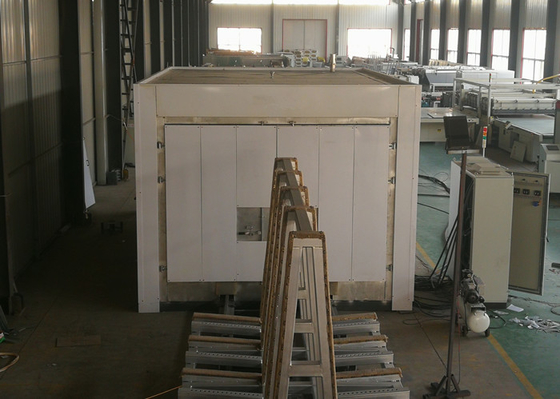

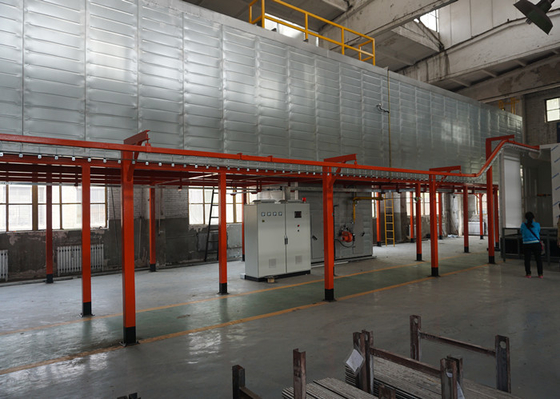

2.Product Pictures

3. Our Service

4. Packing & Delivery

According to the characteristics of products, transportation, environmental factors .We use foam, cartons, wooden case and other professional

packaging, through heavy card, container, bulk carrier and other transportation tools .put the goods safe and timely to the custome

5. OUR Service:

1. Our warranty is 12 months. Parts have free replacement excluding artificial damage in Warranty. During warranty period, shipping cost of

replacement products or parts are our responsibility.Beyond the warranty period, we provide spare parts to customers at factory cost.

2. The international terms we can accept FOB/CFR/CIF,we have agent of shipping company with cooperation for more than ten years ,they are

very helpful with transportation by sea, express, and air.

3. We are welcome to all of the world client to visit our factory.Just tell us what is time you are arrive,we will pick up you in the airport.

4. We will send the installation drawings, you can see the installation drawings installed the oven step by step.We can also provide installation

service if you need.

6. Buyer Feedback

To provide you more details and quotation, would you pls let me know the following information:
1. What is the max and min size for painted product? Would you pls send us some pictures for your product?
2.The max weight of the workpiece
3. The material of the workpiece
4. How many pieces will you paint in one hour or one day?
5. Do you need to change colors every day? How many colors do you have in total?
6. What is your available space for this powder coating line project(length,width and net height)?
7. What is the heating source?(natural gas,LPG,dieseloil,electricity)
8. What kind of pretreatment system do you need?(sand or shot blasting, dipping tank type or spray pretreatment by chemical liquid?)
9. The local electricity conditions(_V/_Phase/_Hz)
10. Do you have any special requiremnts about the package?
We like to provide you our full suport for your powder coating line project.
